Vacationlands K Span Roll Forming Machine With 20Mpa Hydraulic Pressure

Product Categories

Jiangyin Dingbo Technology CO., Ltd.

Contact Now

Brand Name : DB

Model Number : accoring to the profile

Certification : CE.SGS.ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Set

Price : US $30,000 - 40,000 / Set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10 Set/Sets per Month

Delivery Time : 30 ~ 50 Days After Receiving the Deposit

Packaging Details : Nude Package in 40 GP Container

Color : Optinal

Contact Now

CE certificated automatic CZ purlin interchangeable roll forming machine

The profile drawing

Working flow

Vacationlands K Span Roll Forming Machine With 20Mpa Hydraulic Pressure

Main Specification

Manual decoiler
Capacity	3ton
Loading width	MAX 500mm
Valid expanding range for coil inner diameter	480-520mm

Main roll forming system
Main motor power	15kw
Type	Casting steel
Driven	double chain transmission
Feeding and leveling power	4KW
Hydraulic power	5.5kw
Hydraulic pressure	20Mpa
Punching	Hydraulic pre-punching before forming
Punching mould	Cr12mov
Cutting blade	Cr12mov
Leveling rollers	7rollers(three upper and four lower)
Roll station	18groups
Raw material	maximum 1.0mm thick, galvanized steel
Valid width after fromed	100mm-300mm
Motor for width adjusting	4.5KW(1.5KW*3)
Working speed	10m--15m/min
Length Tolerance	±1.5mm
Weight of machine	about 14ton
Size of machine	11000×1800×1800mm L x W x H
Control	LC Panasonic, made in Japan.

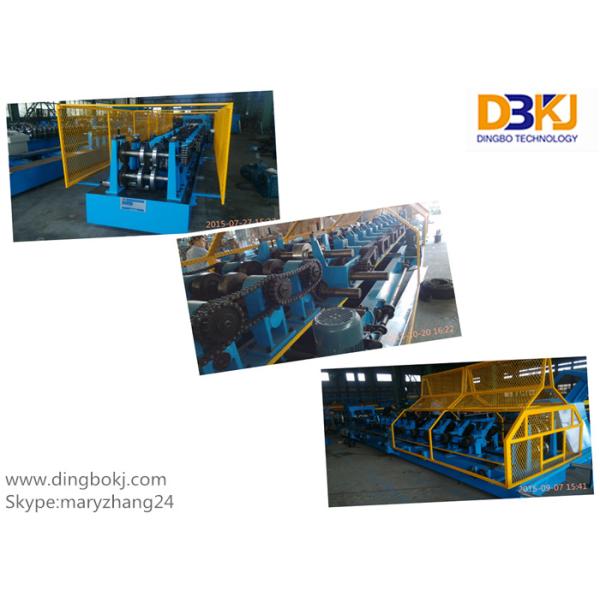

Pictures for Reference
